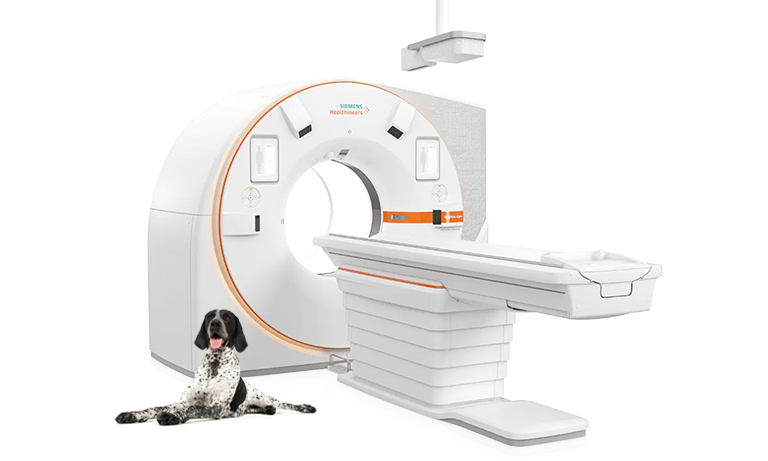

NAEOTOM Alpha
A new era in Veterinary CT
The NAEOTOM Alpha, enhanced with Quantum Technology®, signifies a groundbreaking advancement in veterinary CT technology.
Utilizing the innovative direct signal conversion of its QuantaMax detector, NAEOTOM Alpha stands as the world’s first photon-counting veterinary CT, delivering high-resolution images at a minimal dose. It provides spectral information with each scan and ensures improved contrast with reduced noise.
Benefit from a range of clinical options with breakthrough consistency, facilitating confident clinical decision-making and enable the scanning of patients who were previously excluded. This advancement in veterinary diagnostic systems offers a new level of reliability.
We provide both new and factory refurbished veterinary diagnostic systems to meet both large and small animal study needs.
Key Features:
- Large 82 cm bore
- Multipurpose table: The table-top moves independently of the base. Can be lowered extremely close to the floor.
Specifications:
- 2 x Vectron X-ray tubes
- 2 x QuantaMax photon-counting CT detectors
- Max number of slices: 2 x 144
- Max number of reconstructed slices: 2 x 288
- mA: Up to 1.300 mA
- Temporal resolution: Down to 66 ms
- kV: 90, 120, 140 kV / Sn100, Sn140 kV
- z-coverage: 144 x 0.4 mm / 120 x 0.2 mm (Quantum HD)
- Spatial resolution: 0.11 mm (in-plane) in Quantum HD
- Power: 2 x 120 kW
- Max. scan speed: Up to 737 mm/s (with Turbo Flash)
- Table load: Up to 307 k
- Speed: Up to 737 mm/s (with Turbo Flash)
